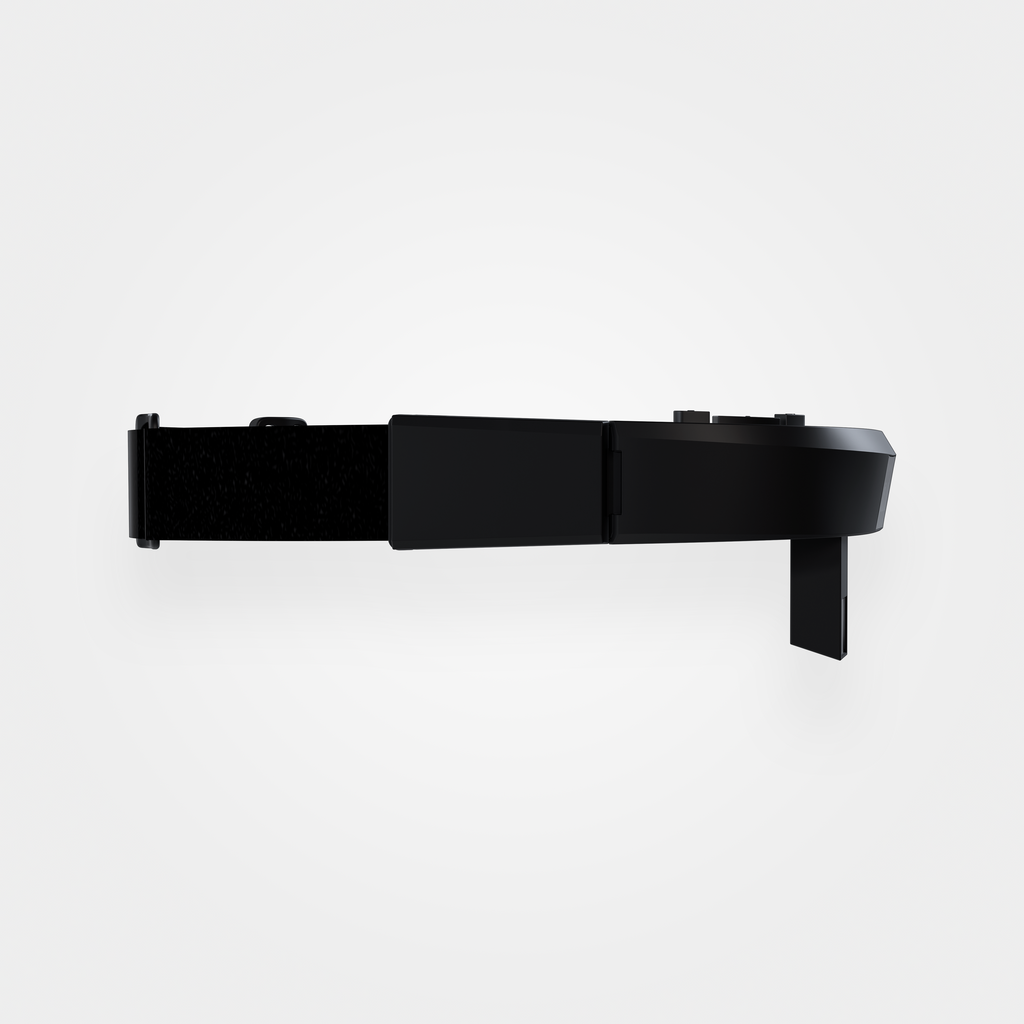

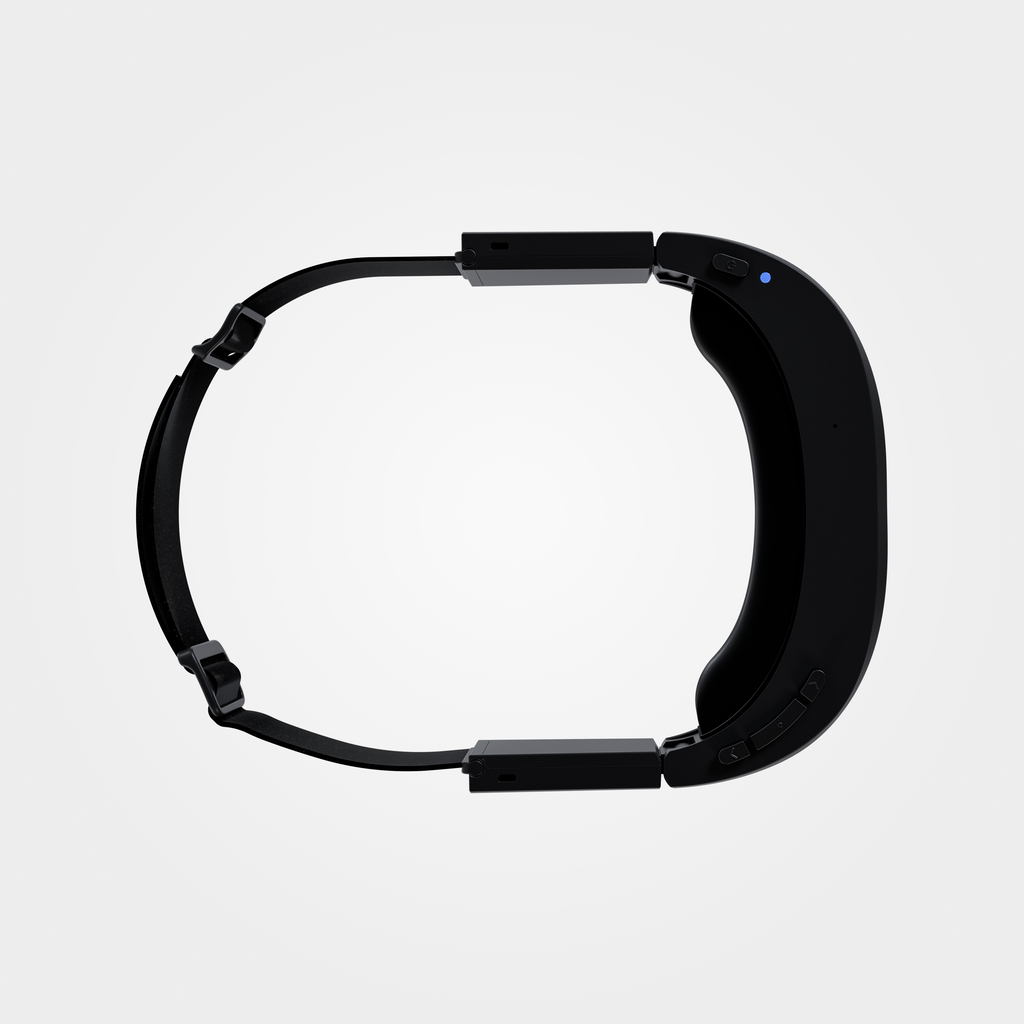

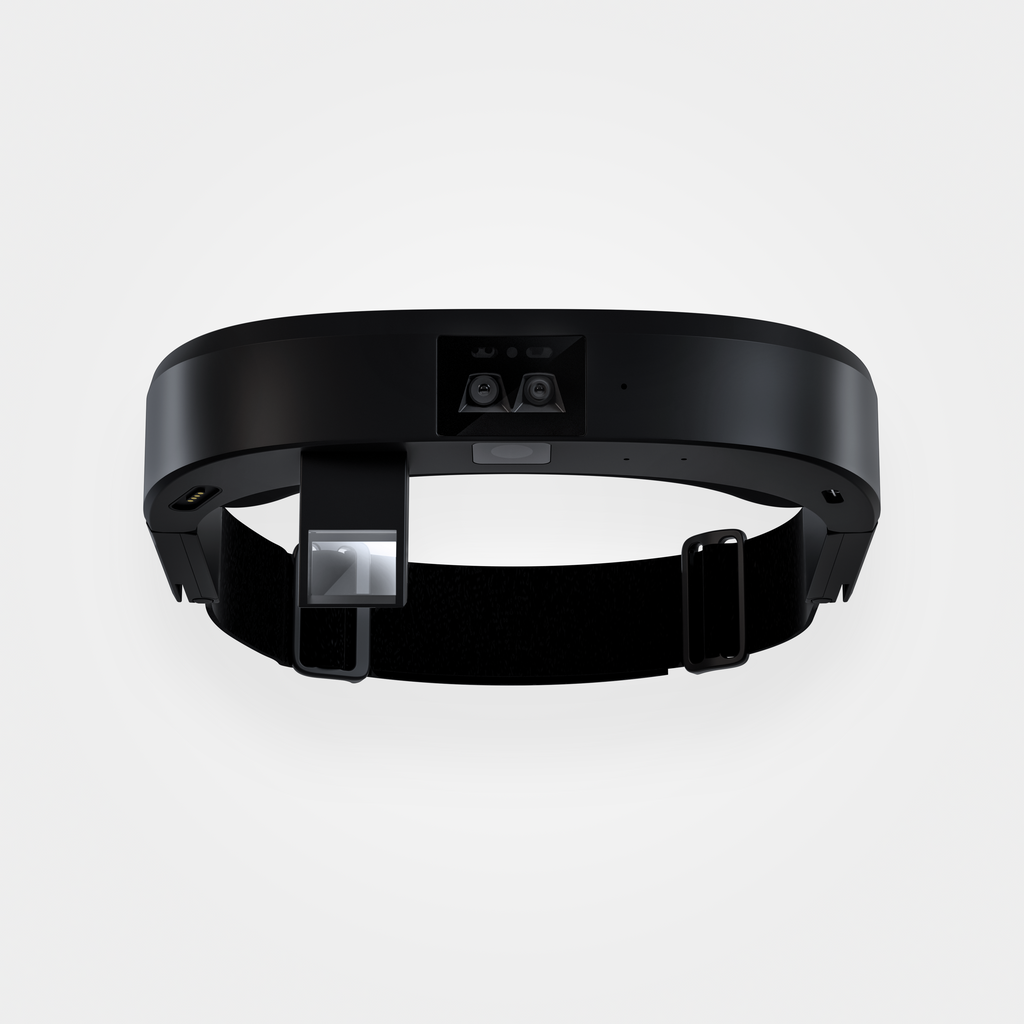

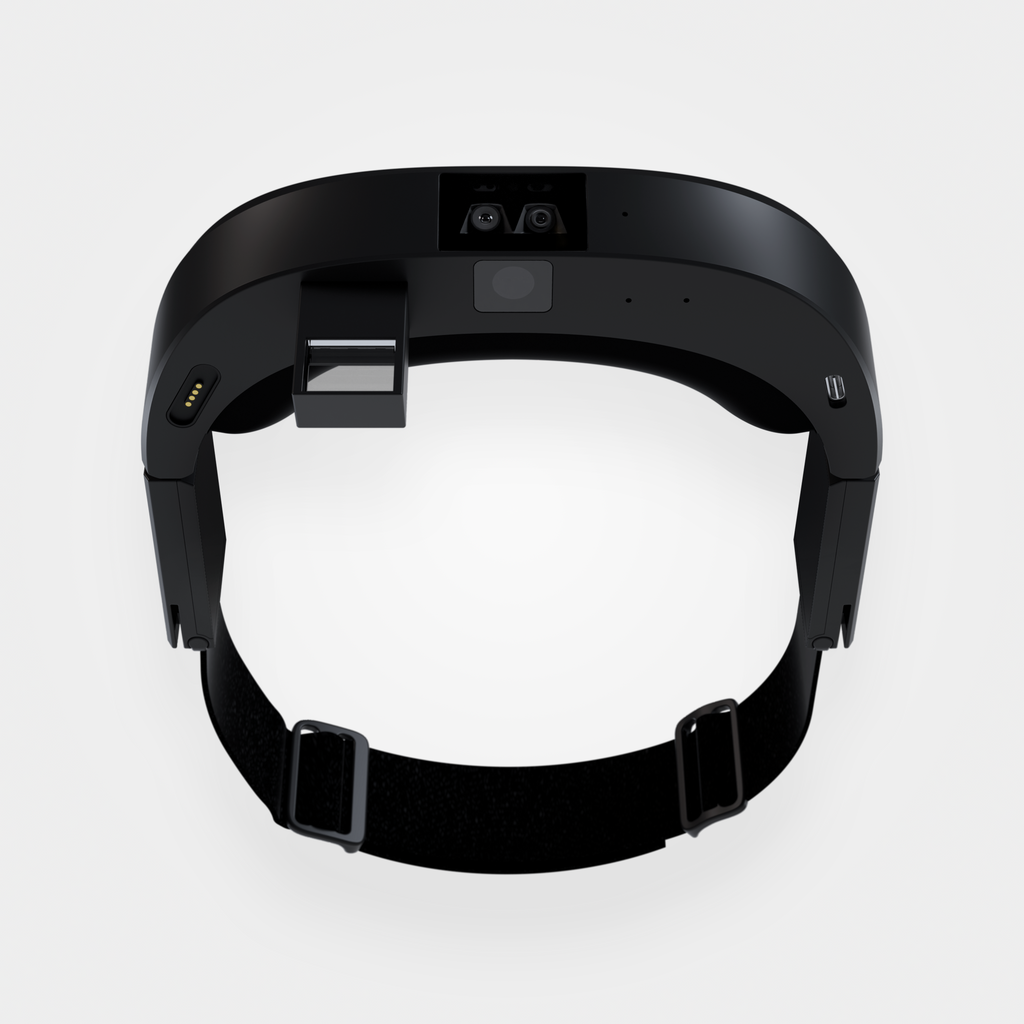

RealWear Arc 3

127033d

The RealWear Arc 3 is a voice-controlled assisted reality headset that gives frontline workers instant access to the information they need, all while keeping their hands free. Worn like a headband, it's the lightest headset in the RealWear portfolio. Built with a see-through micro-OLED display that brings sharp, detailed visuals to life, without losing sight of the world around them. The RealWear Arc 3 empowers workers to access documents, capture images, join video calls, and run custom applications – all without touching a screen.

$ 2,950.00 USD

Precision Display

A double-retina see-through display delivers sharp, detailed visuals with outstanding color accuracy – making digital information crystal clear.

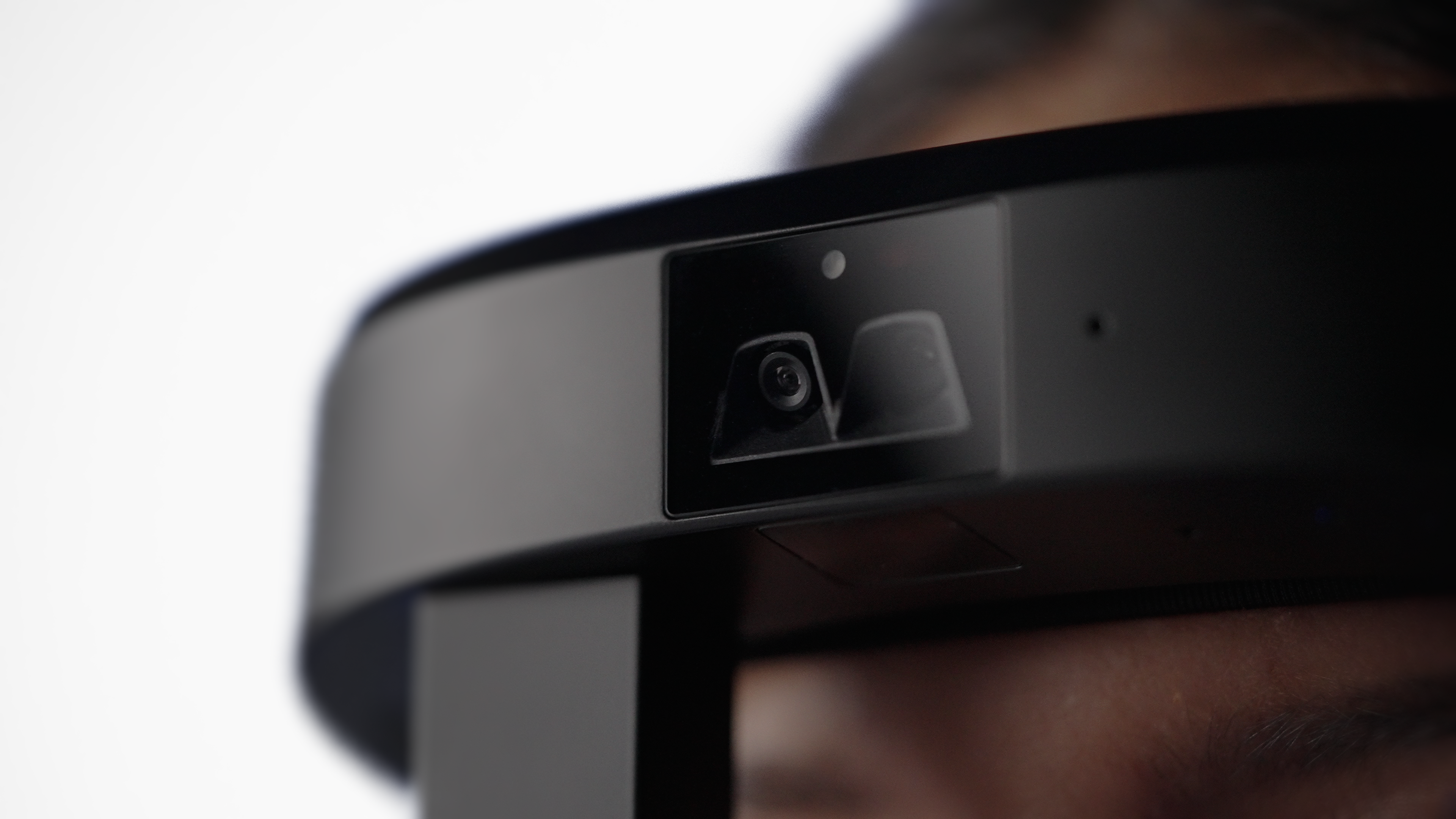

Dual-Camera System

A powerful 50 MP main camera paired with an 8 MP wide-angle sensor captures every detail with stunning clarity, from high-resolution images to seamless video calling.

Built for Comfort

At just 179 grams, the RealWear Arc 3 is engineered for all-day comfort and built to work seamlessly with prescription glasses and Peltor-style headsets.

Clear Stereo Audio

Two internal speakers and four noise-cancelling microphones (up to 100dB) keep conversations clear in loud environments.

General

Chipset

Qualcomm® Snapdragon™ 662

Memory

64GB / 4GB RAM

Material

LEXAN™ EXL9330

Ports

USB Type-C

Weight

179 g (6.3 oz)

Dimensions

Folded: 160 × 65 × 67 mm (6.30 × 2.56 × 2.64 in)
Unfolded: 160 × 121 × 67 mm (6.30 × 2.56 × 2.64 in)

Operating Temperature, Humidity

−20°C to 45°C (−4°F to 113°F) / 10%–80% (non-condensing)

Ruggedization

None

Display

Technology

Micro-OLED (Full-Color, 95% DCI-P3)

Resolution

1920 x 1080 (FHD)

Field of View

22°

See-through Display

Yes

Supported Eye

Right eye

Adjustable Display

No

Connectivity & Sensors

Wi-Fi

802.11 a/b/g/n/ac (2.4 GHz and 5 GHz)

Bluetooth

Bluetooth 5.1 (BLE + standard)

GPS and Location

GPS, GLONASS, NavIC, BeiDou, Galileo, QZSS, SBAS, Dual-Frequency GNSS, Qualcomm® Sensor-Assisted Positioning

Sensors

3-Axis Gyroscope, 3-Axis Accelerometer, Barometer, 3-Axis Magnetometer, Ambient Light Sensor, Wear Detection Sensor, Capacitive Touchpad and Awareness Sensor (2MP, 149.7° FOV, B&W).

Power & Charging

Battery

Rechargeable lithium-polymer battery (2000mAh / 3.8V)

Charging Options

USB Type-C charging or Arc 3 Base - Charging Station

Camera

Main Camera

50 MP, 82° FOV (Sony LYT-600)

Wide-Angle Camera

8 MP, 120° FOV (OmniVision OV8856)

Video Resolution

4K at 30 fps, 1080p at 120 fps

Supported Codecs

H.264, HEVC, MPEG-4, VP8/9, VC1, H.263, MPEG-2

Flash

Yes

Audio

Microphones

4 digital microphones with active noise cancellation (up to 100 dBA)

Speaker

Internal 85dBA Loudspeaker on both sides

Software & Security

Operating System

Ari OS (Android 13)

Sign-In Options

Companion App, Voice Keyboard (Secure Mode), Everykey

Security

Qualcomm® Trusted Execution Environment, Secure Boot, Crypto Engine

Cloud

Ari Cloud (Centralized Deployment and Management)

Supported Languages

Chinese Cantonese (中文粵語), Chinese Simplified (中文简体), Chinese Traditional (中文繁體), Czech (Čeština), Danish (Dansk), Dutch (Nederlands), English (Australia), English (India), English (United Kingdom), English (United States), French (Français), German (Deutsch), Indonesian (Bahasa Indonesia), Italian (Italiano), Japanese (日本語), Korean (한국어), Norwegian Bokmål (Norsk bokmål), Polish (Polski), Portuguese (Português), Russian (Русский), Spanish (Español), Thai (ไทย), Turkish (Türkçe)
